项目(Item) | 描述(Description) |
额定电压(Rated Voltage) | DC 13.5V |
启动电压(Start Voltage) | DC 9.0V |
操作电压(Operation Voltage) | DC 9.0~16.0V |
输入电流(Input Current (AVG.)) | 0.4 (0.55 Max.) A |
输入功耗(Input Power(AVG.)) | 5.4 (7.425 Max.) W |
转速(Speed) | 3800±10%RPM |

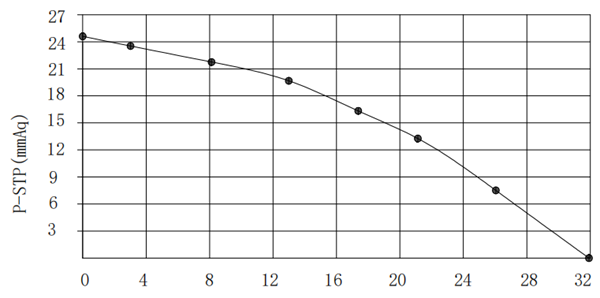

最大风量(Max. Air flow)
(静压为0时(At 0 Static Pressure)) | 31.8 (Min. 28.62)CFM
54.0 (Min. 48.6)CMH |
最大静压(Max. Air pressure)
(风量为0时(At 0 Airflow)) | 24.77 (Min. 20.06)mm H₂O
242.75(Min. 196.6) Pa |
噪音(Acoustical Noise (AVG.)) | 53dB(A)@3800RPM
(Max. 60dB(A)@4180RPM) at 1m |
绝缘等级(Insulation Type) | UL: Class A |
绝缘强度(Insulation Strengt) | 10 MEG Ohm Min. AT 500 V DC
(Between Frame And (+) Terminal) |
耐压强度(Dielectric Strength) | 5 mA MAX. AT 500 V AC 50/60 Hz 1 Minute,
(Between Frame And (+) Terminal) |
